The rig floor is the working center of a drilling rig. It is where the pipe is lifted, supported, connected, and controlled during drilling operations. Because of this, the equipment used on the rig floor must be understood clearly by all staff.
This guide explains the main rig floor equipment, its function, and its general work range in simple language for training and website use.
Slips

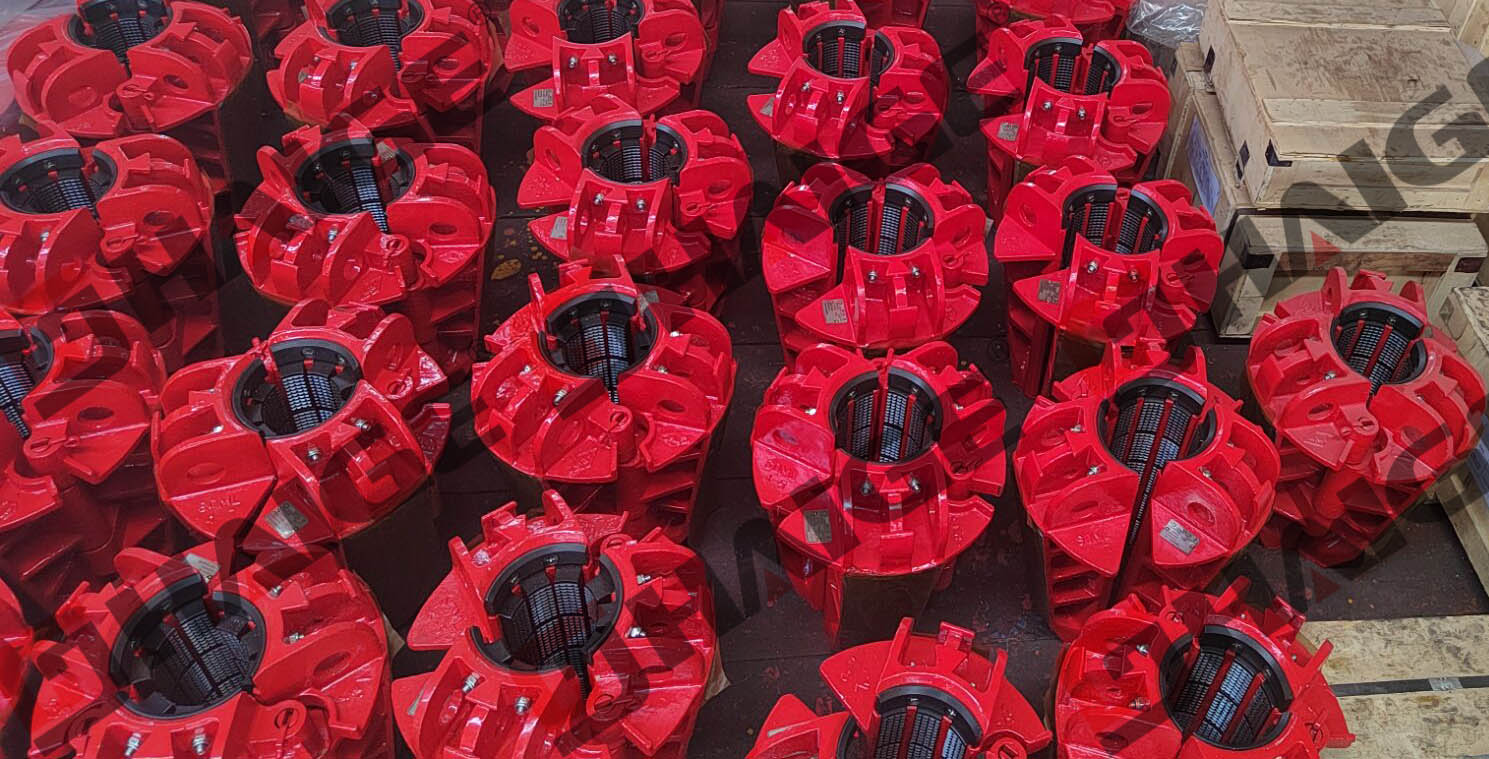

Slips are gripping tools to hold drill pipe, drill collar or casing in place. They are placed around the pipe and locked in place, so the string does not move downward.
Function:
Slips are used to hold the string while making or breaking connections and during other pipe handling activities.
Work range:
They are used during drilling, tripping, and casing operations. Different slips are selected based on pipe size and the type of tubular being handled. Common categories include drill pipe slips, drill collar slips, and casing slips.
Elevators
Elevators are lifting tools used to raise and lower drill pipe, casing, and tubing. They are connected to the hoisting system and hold the pipe while it is being moved. (Elevators (drilling rig), 2021)
Function:
Their main job is to lift tubulars safely and transfer them between the rig floor and the derrick.
Work range:
Elevators are used in drilling, casing running, and well completion work. They must match the tubulars’ size and load rating.
Tongs

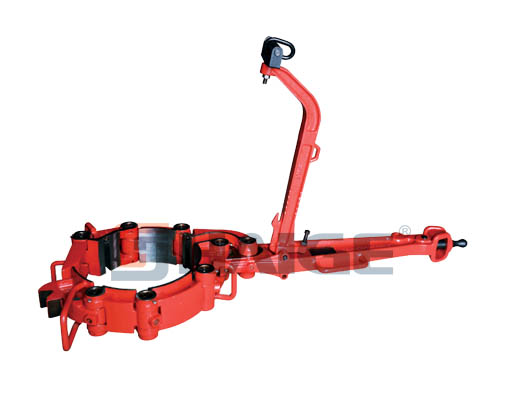

Tongs are the tools to tighten or loosen threaded connections on drill pipe and casing. They allow the crew to apply torque in a controlled way.
Function:
Tongs help make up or break out pipe joints correctly.
Work range:
They are used on different pipe sizes and connection types. Depending on the rig, manual tongs or power tongs may be used.
Spider
The Spider grips the pipe from the outside and supports it in the well center. It is used during pipe handling and connection work.
Function:
It keeps the tubular string stable and prevents it from moving.
Work range:
Spiders are commonly used in drilling and casing operations. They are especially useful when the crew needs to hold pipe while other equipment is being moved.
Rotary Table
The rotary table is a floor-mounted device that rotates the drill string on conventional rigs. It works with the Kelly drive system on older drilling setups. (Rotary Table (Drilling Rig), 2024)
Function:
It provides rotation to help drill the well.
Work range:
Rotary tables are mainly found on traditional rigs. Many modern rigs now use a top drive instead.
Top Drive
A top drive is a motorized drilling system that rotates the drill string from above. It is mounted in the derrick and is widely used on modern rigs. (Top Drive Systems, 2026)
Function:
It gives the drill string rotation and improves drilling speed and control.
Work range:
Top drives are used in drilling, reaming, and back-reaming operations. They also reduce the number of manual pipe handling steps.
Driller’s Console
The driller’s console is the main control station on the rig. It allows the driller to monitor and operate key equipment and drilling functions. (Driller’s Console Operation Manual, n.d.)
Function:
It helps control hoisting, rotation, circulation, and pressure-related operations.
Work range:
The console is used throughout the drilling process and is one of the most important control points on the rig floor.
Safety Clamps
Safety Clamp

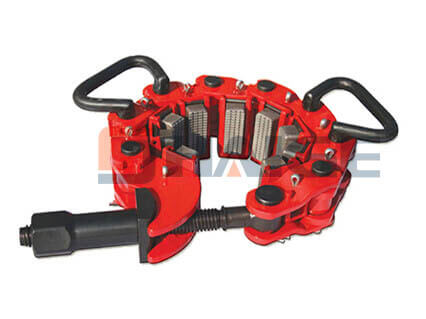

Safety clamps are backup tools used to grip pipe and prevent it from slipping. They add an extra level of safety during pipe handling tasks. (Safety Clamp – Safety Training & Awareness, n.d.)
Function:
They help stop the pipe from dropping unexpectedly.
Work range:
Safety clamps are used during pipe handling, maintenance, and other operations that require extra support.
Pipe Racks
Pipe racks serve as storage areas for drill pipe and other tubulars. They help organize equipment and keep the work area clear.
Function:
They store pipes safely and make it easier to access when needed.
Work range:
These areas are used during drilling and casing operations when pipe needs to be staged, stored, or prepared for use.
Training Summary
Understanding rig floor equipment is important for safe and efficient drilling operations. Each tool has a specific purpose, and using it correctly helps reduce risk, prevent damage, and improve teamwork.
For staff training, the primary points are:
- Know the name of each tool.
- Know its function.
- Use the correct equipment size and rating.
- Follow safety procedures at all times.
- Keep the rig floor clean and organized.
