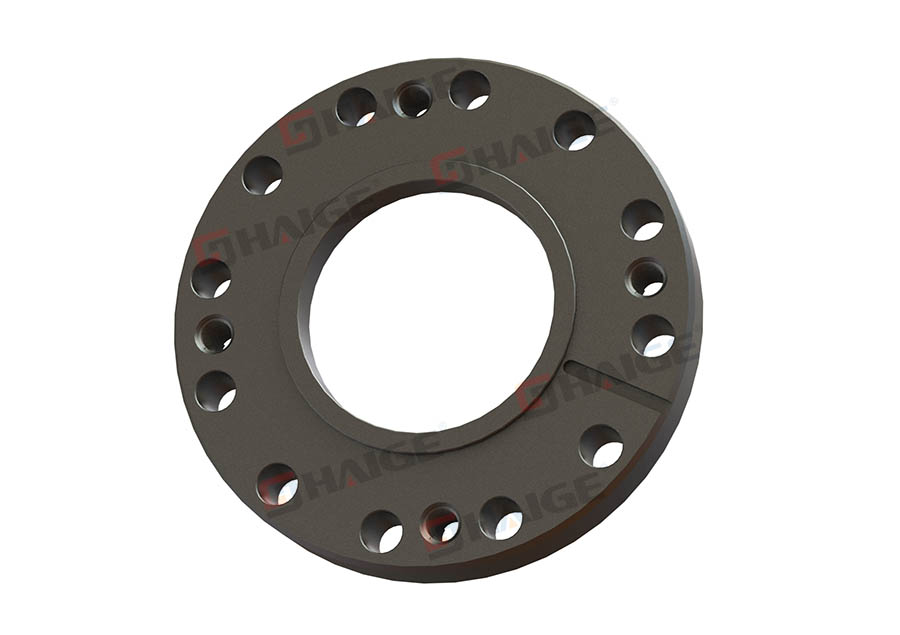

A Mud Pump Wear Plate ( Mud Pump Liner Wear Plate) is a sacrificial steel component used in the fluid end of a triplex or duplex mud pump. Its primary job is to protect the pump’s expensive main frame—specifically the power end and the liner seals—from the abrasive and corrosive nature of drilling fluid (mud).

Primary Functions

Surface Protection: It provides a flat, hardened surface for the liner to seat against. Without it, the constant vibration and pressure of the pumping cycle would force the liner to rub directly against the pump module, resulting in costly structural damage.

Alignment: It ensures the Liner is exactly aligned within the fluid end, which is key to maintaining pressure and avoiding premature seal failure.

Sacrificial Barrier: It is much cheaper and easier to replace a Wear Plate than it is to repair or replace the entire fluid End Module.

How it Works

In a typical Triplex Pump, the Wear Plate is positioned behind the Liner. As the piston moves back and forth, the Wear Plate absorbs the mechanical stress and the erosive effects of any mud that might bypass the primary seals. (How To Treat Your Type P Triplex Mud Pump, 2025)

Key Characteristics

Feature Description
Material Usually made from high-strength, heat-treated alloy steel to resist abrasion.
Precision They are ground to very tight tolerances to ensure a leak-proof seal with the liner.
Compatibility Match with pump models

When to Replace

Wear plates should be inspected every time a liner is changed. (Weatherford MP10 Mud Pump Operations & Maintenance Manual, n.d.) Signs that a replacement is needed include:

Washouts: Grooves or “paths” eroded into the metal by high-pressure mud.

Pitting: Corrosion or physical indentations on the surface.

Thinning: General loss of thickness that prevents the liner from seating tightly.

Looking for Mud Pump Wear Plate?

Haige’s Mud Pump Wear Plates are compatible with all major Mud Pumps, including EMSCO FB-1600, Gardner Denver PZ series, National 12-P-160, NOV A-1700, Ideco, Wirth, and more.

Contact Haige today for Mud Pump Wear Plate, Mud Pump Liners, Zirconia Ceramic Liners, and other Mud Pump Parts quote.

#MudPumpWearPlate #DrillingEquipment #FluidEndparts #OilAndGas #DrillingSolutions #HighpressureMudpumpparts #OilfieldParts #WellDrilling #LinerWearPlate #Triplexmudpumpparts #ChinaMudPumpparts #Mudpumpwearplatestocks #stocks #China #Mudpumpmanufacturer #anticrossion #NOVMudPumpParts

References

(2025). How To Treat Your Type P Triplex Mud Pump. NOV Inc..

https://www.nov.com/-/media/nov/files/products/rig/rig-equipment/mud-pumps-fluid-mixing-and-processing-systems/mission-type-p-triplex-mud-pump-booklet.pdf

(n.d.). Weatherford MP10 Mud Pump Operations & Maintenance Manual.

https://studylib.net/doc/26317018/model-mp-10-triplex-pump-operations-maintenance-manual
