Mud Pump Liners – Frequently Asked Questions

Mud Pump Liners are critical wear components that affect drilling performance, fluid-end reliability, and overall maintenance costs. Selecting the correct mud pump liner requires a clear understanding of liner materials, pump compatibility, sizing, operating conditions, and replacement requirements.

Haige Mud Pump Liners FAQ guide provides answers to the most common questions from drilling contractors, oilfield professionals, and equipment buyers. It covers topics such as bi-metal and ceramic mud pump liners, liner selection, pump model compatibility, service life, common wear problems, and replacement recommendations.

Explore the FAQs below to find the information you need to select, maintain, and replace mud pump liners with greater confidence.

1. What types of Mud Pump Liners does Haige supply?

Haige Machinery supplies different mud pump liner configurations and materials for different drilling applications, including Bi-Metal Liners and Ceramic Zirconia Liners.

The appropriate liner depends on the mud pump model, liner dimensions, operating pressure, pump speed, drilling-fluid abrasivity, solids content, piston compatibility, and required service life.

2. What is the difference between Bi-Metal and Ceramic Mud Pump Liners?

Bi-metal liners provide a practical balance of wear resistance, mechanical strength, availability, and purchase cost, making them suitable for many conventional drilling applications.

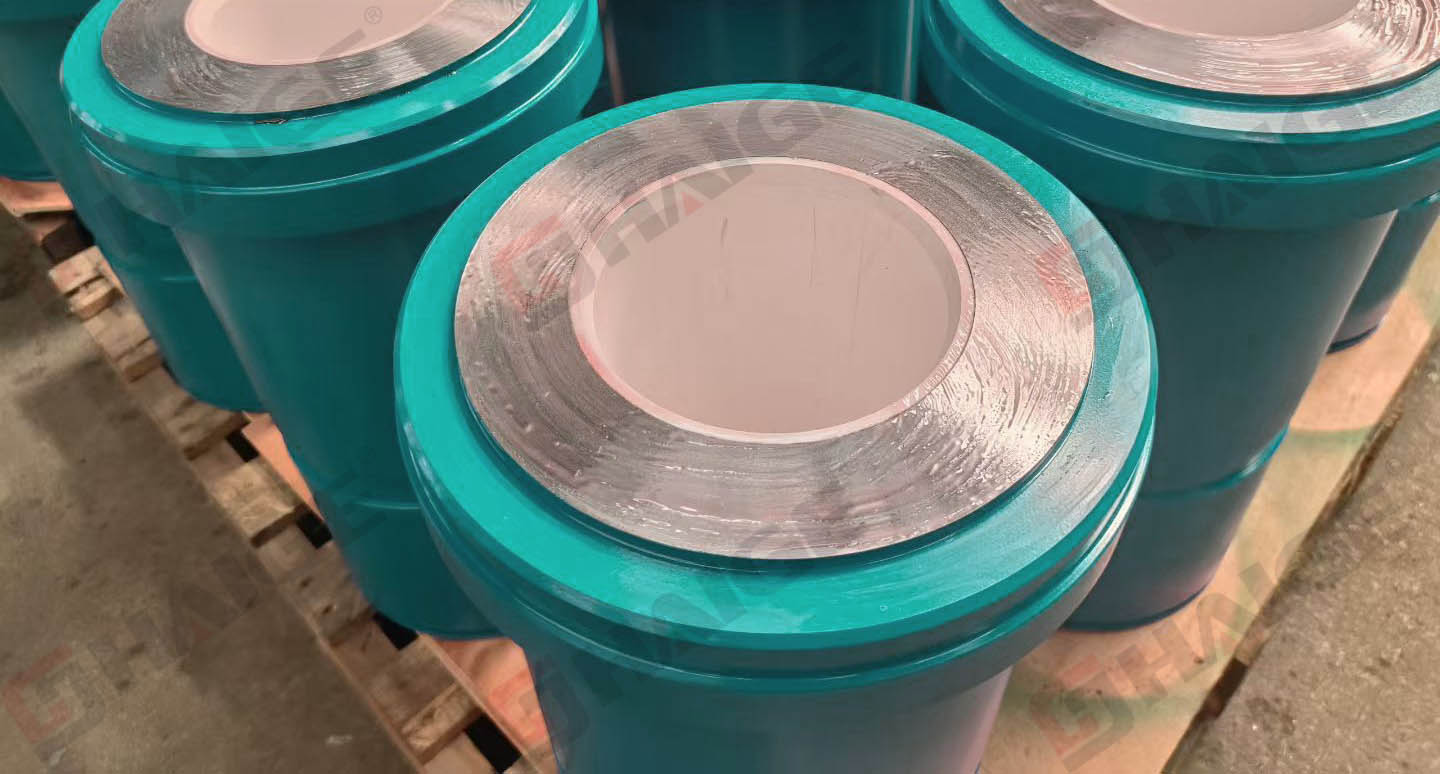

Ceramic liners are designed for applications requiring higher abrasion resistance and potentially longer operating intervals. They provide excellent performance in abrasive drilling mud, high solids content, or operations where reducing liner replacement frequency is important.

The best choice depends on your operating conditions and total cost per operating hour, not simply the initial purchase price.

3. Are your Mud Pump Liners compatible with EMSCO, NOV, or Gardner Denver?

Yes. We supply Liners for Duplex Mud Pumps and Triplex Mud Pumps. Our Mud Pump Liners are interchangeable with OEM brands, including:

EMSCO– F-350, F-500, F-650, F-800, F-1000, FB-1300, FB-1600, FC2200

NOV– 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220

Gardner Denver – PZ-7, PZ-8,PZ-9, PZ-10, PZ-11, PAH, THE

Oilwell – A-350-PT, A-560PT, A-600-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT

MH Wirth – TPK-1000, TPK-1300,TPK-1600, TPK-2000, TPK-2200

Bomco

Honghua

Ideco

4. How do I know which Mud Pump Liner size I need?

The correct liner size depends on the mud pump model, required flow rate, operating pressure, pump speed, piston specification, and OEM-approved liner configuration.

Important identification information includes:

  • Pump manufacturer
  • Pump model
  • Liner bore
  • OEM part number
  • Outside diameter
  • Overall length
  • Piston specification

Do not select a liner based only on nominal bore diameter.

5. Can you identify a Mud Pump Liner from an OEM part number?

Yes. An OEM part number is one of the most useful references for identifying a replacement mud pump liner.

Please provide the complete part number together with the pump model whenever possible.

If the original part number is unavailable, we can review liner dimensions, technical drawings, photos, or existing liner details. This will help us find the right replacement.

6. Can you manufacture Mud Pump Liners according to drawings or samples?

Depending on the product configuration and technical requirements, we can manufacture replacement mud pump liners to approved drawings, specifications, or sample dimensions.

For drawing- or sample-based inquiries, provide the available technical information, including Liner dimensions, Bore size, Material requirements, Dimensional tolerances, and Pump model.

7. Are Haige Machinery Mud Pump Liners OEM or aftermarket?

We supply aftermarket replacement mud pump liners designed for compatible OEM pump applications.

When evaluating an aftermarket liner, buyers should consider more than purchase price. Important factors include:

  • Material composition
  • Dimensional accuracy
  • Bore tolerance
  • Surface finish
  • Wear resistance
  • Pressure capability
  • Quality-control procedures
  • Piston compatibility
  • Traceability
  • Expected operating life

The objective is reliable performance and competitive total operating cost.

8. How long does a Mud Pump Liner last?

Mud Pump Liner service life varies according to operating conditions. Main factors include drilling mud abrasivity, pump pressure, liner materials, and solids-control effectiveness.

Generally, Haige Machinery Bi-Metal High-Chrome Liners last 800-1000 hours, while Zirconia Ceramic liners last 4000+ hours.

9. When should a Mud Pump Liner be replaced?

Inspect a mud pump liner periodically. Replace the liners when they reach the wear limit or show unacceptable damage, such as Excessive bore enlargement, severe scoring, washout, cracking, corrosion, abnormal piston wear, reduced pump performance, or excessive leakage.

A condition-based replacement strategy provides more useful maintenance than relying on a universal number of operating hours.

10. What causes mud pump liner wear?

Common causes of premature liner wear include:

  • Abrasive drilling solids
  • High sand content
  • Excessive pump speed
  • High operating pressure
  • Incorrect piston selection
  • Poor installation
  • Misalignment
  • Inadequate liner cooling or wash
  • Poor drilling-fluid solids control
  • Damaged or contaminated sealing surfaces

Analyzing the actual liner wear pattern can help identify the cause and improve the service life of subsequent liners.

11. Why is my mud pump liner wearing too quickly?

Abrasive drilling mud, excessive solids, unsuitable piston material, high SPM, improper installation, inadequate cooling or wash, or other fluid-end problems may cause rapid liner wear.

If a replacement liner wears unusually quickly, inspect the piston, piston rod, liner seating, drilling fluid, valve system, and liner-wash system rather than simply installing another liner.

12. Do Mud Pump Liners and pistons need to be replaced together?

Not necessarily.

Inspect the piston whenever you replace a liner. If it remains within acceptable dimensional and visual condition, you may not need to replace it immediately.

However, replace a piston showing excessive wear, cracking, chunking, heat damage, chemical deterioration, or abnormal deformation.

A new piston installed in a severely worn liner can also wear out prematurely.

13. What information should I provide when requesting a mud pump liner quotation?

For a quick, accurate quotation, please provide the mud pump manufacturer and pump model. Also include the OEM part number (if available), Liner bore size, Liner material, and required quantity.

If you do not have all of this information, send us your pump model. You can also send a photo, a drawing, or liner dimensions. We can help determine what else we need.

Request a Mud Pump Liner Quote? Looking for replacement mud pump liners?

Haige Machinery offers Bi-Metal Liners and Zirconia Ceramic Mud Pump Liners for EMSCO, Gardner Denver, NOV, Oilwell, Wirth, Ideco, BOMCO, FMC, Weatherford, etc.

Send us your pump model, OEM part number, liner size, material, and required quantity.

We can help verify the appropriate liner type, dimensions, material, and pump compatibility before providing a quotation.
