In the oil and gas drilling, the Fluid End Module is the heart of a mud pump, keeping drilling fluids circulating safely and efficiently.
A premium Fluid End Module not only boosts pump performance but also minimizes downtime and operating costs. It helps operators maximize the life and value of every pumping system.
What Exactly Is a Fluid End Module?

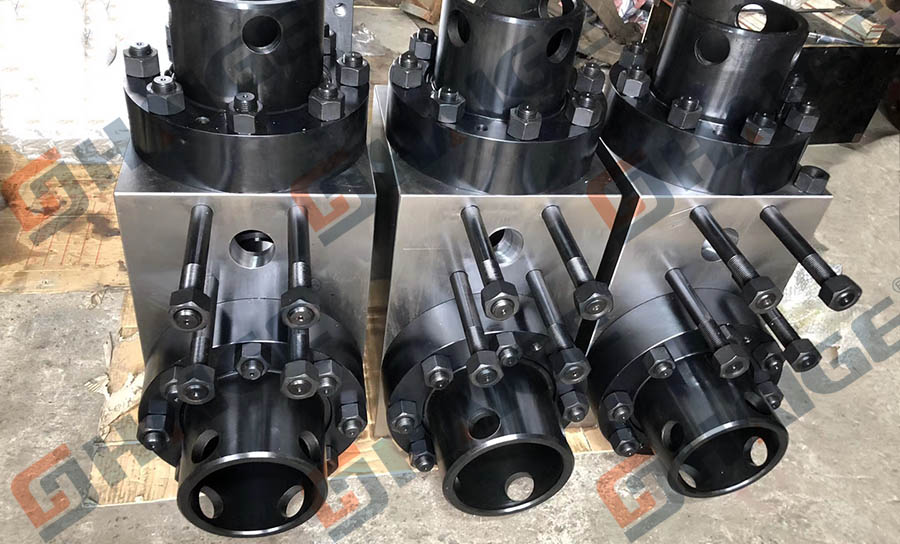

The Fluid End Module is the high-pressure section of a Mud Pump where drilling fluid is pressurized and discharged into the wellbore. It houses the Liners, Pistons, Valves, and Seats, which work together to generate the pressure needed to circulate mud throughout the drilling system.
The Fluid End Modules are exposed to intense pressure, high flow velocity, and abrasive solids. They are typically manufactured from forged alloy steel or premium stainless materials. The forging process provides structural soundness and resistance to cracking, corrosion, and wash-out.
Why Fluid End Quality Matters in Drilling?
A high-quality Fluid End Module ensures operational dependability and safety.
A premium module helps:
Keep a steady flow and consistent discharge pressure.
Prevent premature wear in valves, liners, and seats.
Reduce non-productive time (NPT) from mechanical failures.
Minimize the total cost of ownership (TCO) across your pump fleet.
For operators running multiple rigs, the cumulative effect of reliable Fluid End Modules results in millions in annual savings on maintenance and downtime costs.
Fluid End Module Types and Design Options
Different drilling conditions call for different module configurations:
- One-Piece (Valve-Over-Valve) Modules
Compact, durable, and ideal for high-pressure performance with minimal leakage points.
- Two-Piece or “L-Shaped” Modules
Designed for easier maintenance — suction and discharge bores are separated, allowing quick access to wear parts without removing the entire assembly.
- Custom Engineered Modules
For specialized operations, such as high-temperature or abrasive mud service, manufacturers offer custom metallurgy, flow geometry, or coatings to achieve extended performance.
Material Selection
Fluid End Modules are typically made from AISI 4135 Alloy Steel for high strength and are reliable for standard operations. Special materials, such as stainless steel, are available upon customers’ request.
How to Choose the Right Fluid End Module?
When evaluating a fluid end for your pump or rig operation, focus on:
Pressure and flow requirements — Verify compatibility with your pump’s rated capacity (5,000 psi, 7,500 psi, or 10,000 psi).
Mud properties — Consider fluid abrasiveness, chemical reactivity, and temperature.
Pump compatibility — Verify interchangeability with OEMs such as Gardner Denver, Emsco, Bomco, or National.
Serviceability: Look for modular designs that enable faster, safer maintenance.
Maintenance Tips to Extend Service Life
Maintain clean, properly conditioned drilling fluids to prevent erosion.
Replace valves, seats, and liners before critical wear limits.
Torque bolts and connections to the recommended specs after each maintenance cycle.
Perform regular non-destructive inspections (MPI, ultrasonic, or hardness testing).
Track operating hours and failure patterns to predict replacement timing.
Signs to Replace Your Fluid End Module
Even the toughest steel has limits. Watch for these warning signs:
Irregular pressure readings or discharge fluctuations.
Cracks or leaks near the manifold.
Repeated valve or plunger failures in a short time span.
Visible corrosion or pitting inside the module.
When these occur, proactive replacement is far more cost-effective than waiting for a major breakdown.
The Future of Fluid End Modules
Longer-life materials with improved fatigue resistance
High-pressure designs for deeper and demanding operations.
Conclusion
The Mud Pump Fluid End Module’s impact on operational effectiveness is enormous. A high-quality, properly maintained fluid end prolongs equipment life, reduces downtime, and improves safety — guaranteeing your drilling operation performance.
Upgrade Your Mud Pump Performance Today
Haige Machinery is the leading supplier of Mud Pump Fluid End Modules, Mud Pump Liners, Zirconia Ceramic Liners, Mud Pump Valves & Seats, Pistons, Piston Rods, Valve Cover etc.
Haige Machinery supplies premium Fluid End Modules engineered for durability, high-pressure performance, and OEM compatibility. Whether you need a direct replacement or a custom-engineered solution for extreme drilling conditions, we’ve got you covered.
Our products and services include:
- Forged AISI 4135 alloy steel Fluid End Modules (standard & custom)
- One-piece and two-piece (L-shaped) configurations
- High-pressure modules rated up to 10,000 psi
- Custom metallurgy and coatings for abrasive or high-temperature service
- OEM-compatibleFluid End Modules for Gardner Denver, Emsco, Bomco, National, and more
- Full range of Mud Pump Parts:Mud Pump Liners, Zirconia Ceramic Liners, Pistons, Valves and Seats, Piston Rods, Clamps, Extension Rods etc.
- Technical consultation and after-sales support
Contact Haige Machinery today for a free quote or compatibility check — and keep your rigs running at peak performance.
