Bi-metal mud pump liners are critical wear components used in high-pressure drilling mud pumps (commonly in oil & gas and geothermal drilling). They are engineered using two distinct metals to balance structural strength and wear resistance under extreme operating conditions, which play a central role in maintaining pressure integrity, reducing wear, and ensuring continuous operation.

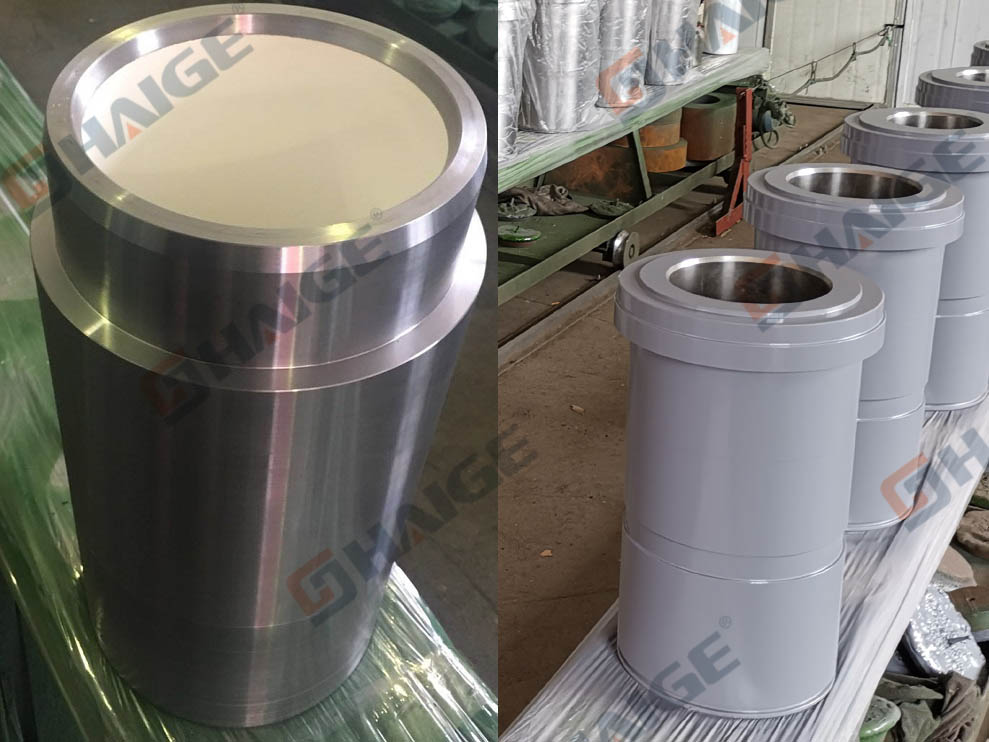

What Are Bi-Metal Mud Pump Liners?

Bi-metal mud pump liners are constructed using two bonded materials:

Outer Layer (Structural Shell): Typically forged carbon steel, designed to withstand high pressure and mechanical stress

Inner Layer (Wear Sleeve): Made from high-chromium cast iron, engineered for abrasion and corrosion resistance

This combination results in a liner that balances strength and wear resistance, making it suitable for demanding drilling conditions.

Why Bi-Metal Liners Matter in Drilling Operations?

Mud pumps operate under extreme conditions—high pressure, continuous cycles, and abrasive drilling fluids. Poor-quality liners can lead to:

  • Frequent equipment downtime
  • Increased maintenance costs
  • Loss of pressure efficiency
  • Premature failure of pistons and seals

Bi-metal liners address these challenges by providing a durable, long-lasting solution that minimizes operational disruptions.

Key Features and Benefits of Bi-Metal Mud Pump Liners

1. Exceptional Wear Resistance

The inner sleeve, typically hardened to 58–65 HRC, resists erosion from sand, cuttings, and chemical additives in drilling mud.

2. High Pressure Capability

The steel outer shell ensures structural integrity under pressures often exceeding 5,000–7,500 PSI.

3. Extended Service Life

Compared to single-metal liners, bi-metal liners can last 800 to 1,200+ operating hours, depending on conditions.

4. Cost Efficiency

Longer lifespan translates to:

  • Fewer replacements
  • Reduced downtime
  • Lower total cost of ownership

5. Compatibility

Bi-metal liners are widely compatible with standard triplex mud pumps, including F-series, PZ series, National Series, Ideco T Series and other leading triplex mud pumps on market.
